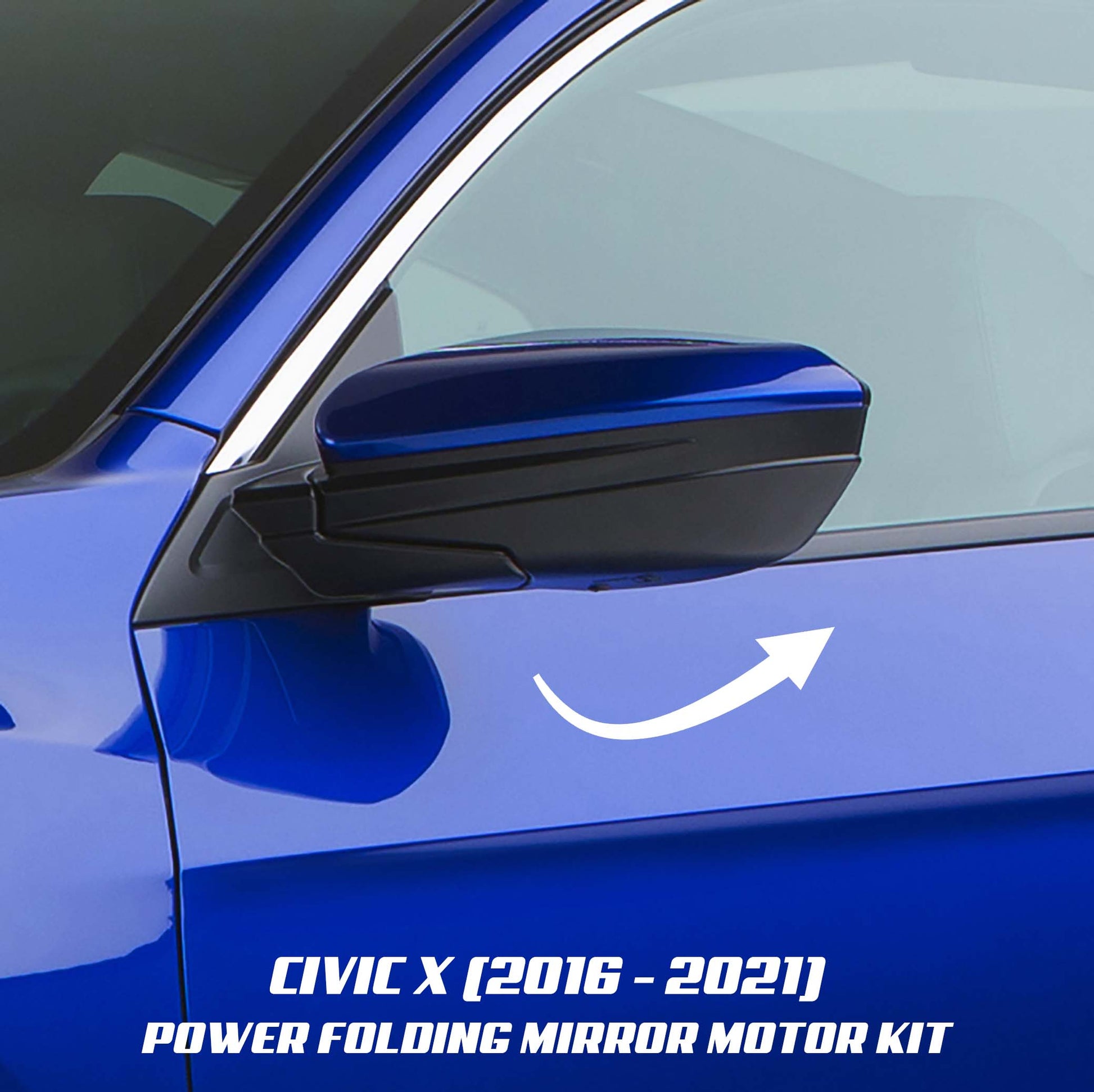

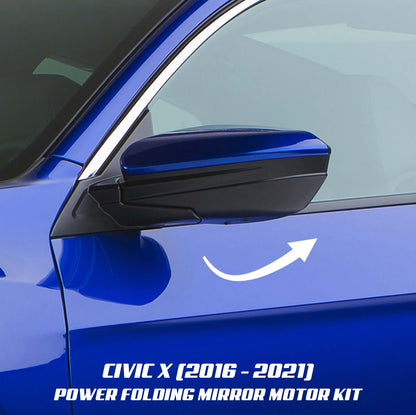

[CIVIC X] FOLDING MIRROR MOTOR KIT
Park In A Tight Spot?
Folding mirrors will help give you more clearance around your vehicle lowering the chance of someone scratching or bumping in to your vehicle while parked.
Convert Your OEM Mirrors!
Full kit to convert (2x) mirrors into power folding mirrors. Prevent costly mirror replacements and damage by passing cars or careless pedestrians.
- Automatic Power Fold Closed When Locking Vehicle
- Automatic Power Fold Open When Unlocking Vehicle
- Push Button Control Included To Fold Mirrors On-Demand

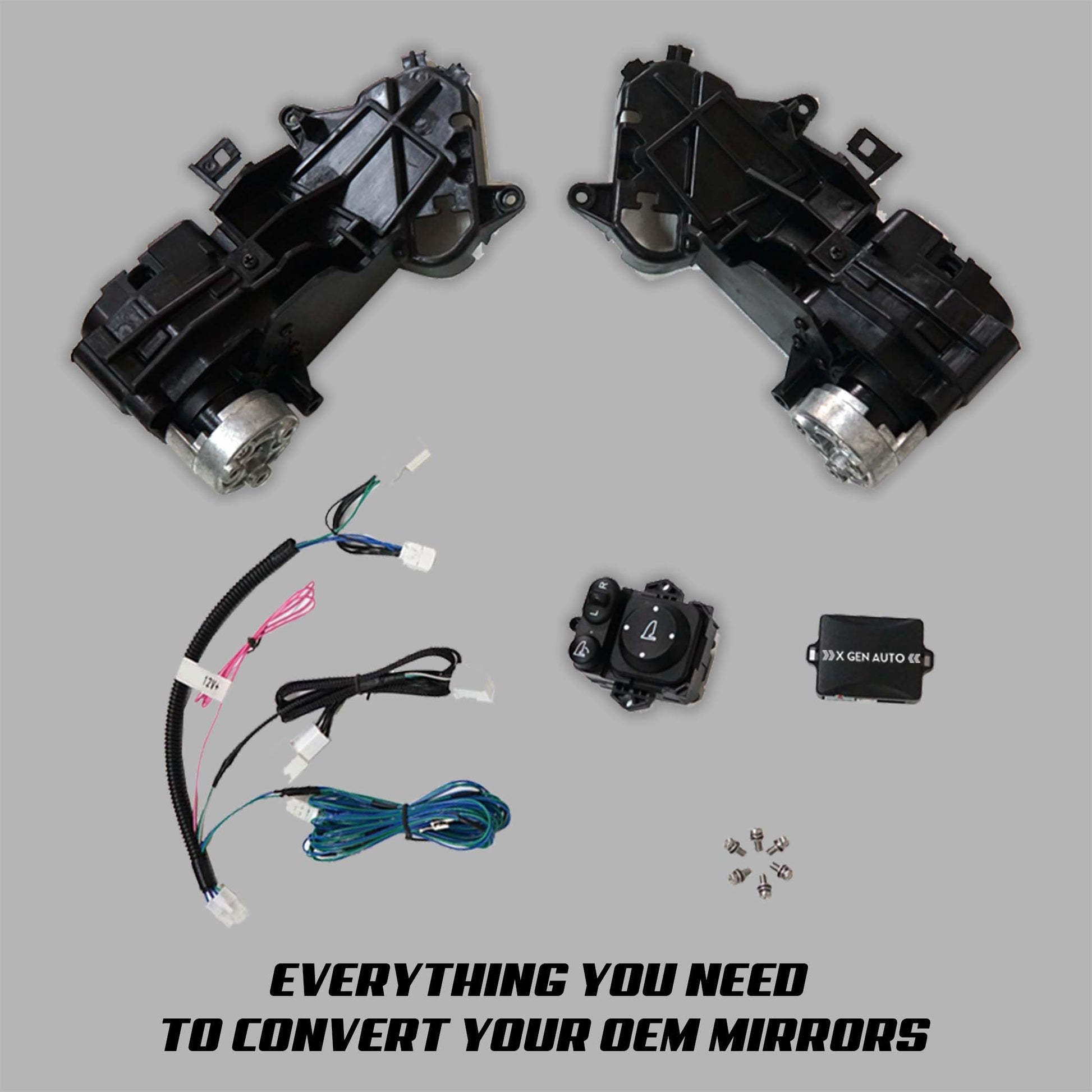

What's In The Box?
(Procedure May Vary Between Vehicle Trims)
1. Remove the OEM mirrors from the vehicle
2. Ensure you have a clean, non abrasive surface to work on
3. Remove the mirror caps and plastic mirror housing
4. Remove the existing mirror hinge and take note of how the mirror hinge is installed in side of the mirror housing. Remove any wiring.
5. Install the mirror motor inside of the housing
6. Route the connector from the mirror motor to follow the same path as the existing wiring from the mirror
7. Close up the plastic mirror housing and mirror cap taking care to properly clip in all pins for a proper seal
8. Attach the mirrors to the vehicle and route the wires inside and behind the door panel
9. Wire up the harness to the mirror motor, existing wiring harness, control module, and door lock.
10. Wire up the +12V power source and ground wire for constant power.
11. Run the wiring harness to the passenger side and install the passenger side mirror now with the motor installed inside.
12. Test all functions before re-installing the door panels. Entire harness is plug and play except for +12V constant power.
Professional installation is highly recommended for best fit
